20-Ton Hydraulic Press Brake

Metal Muncher goes the extra mile to build a Press Brake that works hard. works accurately, and stays that way for years to come. Compare features. Compare results. You can count on first-class American tech­nology, rugged durability, versatility and economy.

Send an inquiry for this item

Description

It’s versatile, accurate, rugged, easy to operate and easy to maintain. That’s the way Metal Muncher makes its Press Brakes. Whether you bend plastic or steel, there’s a Metal Muncher Hydraulic Press Brake to match your needs, ranging from the 17 -ton model to the 350-ton. No matter the size,each machine features convenient operation for maximum output and ease of maintenance for maximum productivity.

Metal Muncher goes the extra mile to build a Press Brake that works hard. works accurately, and stays that way for years to come. Compare features. Compare results. You can count on first-class American tech­nology, rugged durability, versatility and economy.

Proven Performance

Metal Muncher Press Brakes are engineered to handle your metal forming requirements and have proven their performance in thousands of field installations.

Standard Features

  • Clamp Type Backgauge-Manual
  • Adjustable X, Y, & Z • 24″
  • 2 Speed Ram (17T-70T)
  • 3 Speed Ram (95T-350T)
  • NEMA Electrics

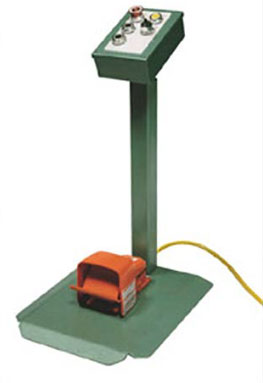

  • Three Position Foot Switch by Linemaster
  • Depth Stop with Digital Readout
  • Bottom lime Delay
  • Hour Meter
  • All Hydraulic Fluids Included
  • American Made Valves and Motors
  • Disconnect Switch
  • American Made Hoses & Fittings
  • All Steel Construction
  • Hydraulic Pressure: 2750 PSI
  • Cylinders are Steel, Double Acting Piston Type with Hardened, Ground and Chromed Rods
  • Hardened Pins with Spherical Bearings for Alignment
  • Front & Back of Bed Machined Smooth for Mounting of Gauges

Additional Options

Download the additional options brochure to view more features:

PRESS BRAKE AVAILABLE OPTIONS

Click to download the complete specification data sheet:

PRESS BRAKE SPECIFICATIONS
