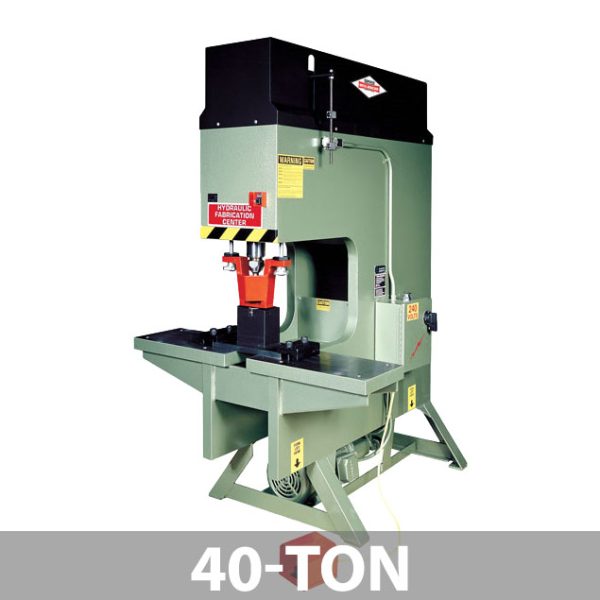

Series GB40 Gap Bed Hydraulic Punch Press

Kalamazoo Metal Muncher GB series is ideal as a dedicated Punch Press, but easily accepts a wide range of standard and optional accessories or can be fitted with special tooling to allow shearing or forming.
Made in the USA

Send an inquiry for this item

Categories: ,

Product Description

The GB Series is a great buy for any shop that needs a solid, dependable, dedicated Punch Press, yet needs the ability to expand the capabilities of a press to allow shearing or forming for special jobs.

For a dependable Punch Press that will give you years of reliable service the Kalamazoo Metal Muncher GB series should be your first choice.

Each Press can be set-up with different tooling to perform separate operations.

Additional Information

Model

GB40

Throat Depth

7″

Stroke Length

4-1/2″

Strokes Per Minute

40@1/2

Punch

40 Ton

Hydraulic Pump PSI

4,000

Weight

1,800 lbs

Model GB40
Throat Depth 7""
Open Height 9""
Stroke Length 4 1/2""
Ram Shaft Diameter 2"
Strokes Per Minute 40@1/2
Platen Table Size (D x W) 10 x 21"
Work Station Height (approx.) 34 1/4"
Punch (hole dia. thru mat. thickness)
max. hole thru material
max. hole (with special tooling)
40 ton
7/8" thru 1/2"
2" thru 1/4"
Hydraulic
pump gpm
psi

7
4,000
Motor (230/460v. 3ph)** 5 hp
Dimensions
width
length
height

21"
22 7/8"
65 1/2"
Weight 1,800 lbs
Rated on mild steel (65,000 psi tensile)
** Optional 208v. available. Tonnage will be derated approximately 10% with 208v., single phase or phase convertor
