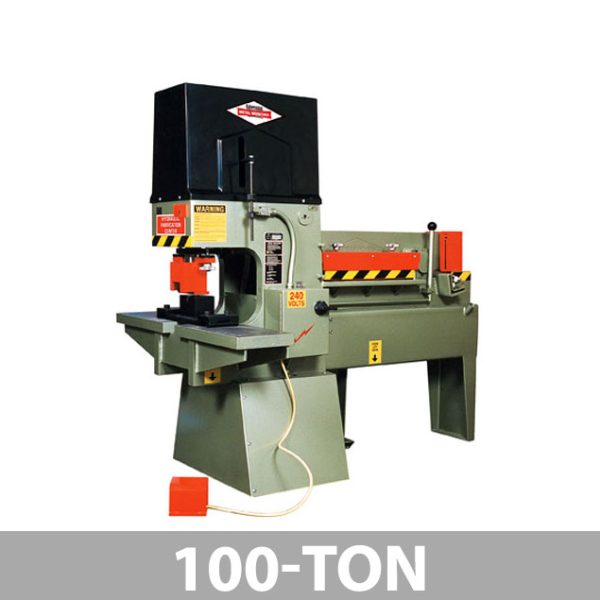

Series MM135 Complete 5-Station Fabrication Center

Kalamazoo Metal Muncher has earned a spot at the top with over 50 years of excellent performance and durability. While others made claims, Kalamazoo Metal Muncher units were busy proving themselves where it really counts . . . on the workshop floor. The many years of on-the-job experience have resulted in design improvement and operating features that assure maximum productive performance and operator safety. No other ironworker offers the smooth, trouble-free performance that has made Kalamazoo Metal Muncher the hallmark of the industry.
Made in the USA

Send an inquiry for this item

Product Description

Two-Cylinder / Two Person Operation

The punch and shear end may be operated separately, independently, and simultaneously at full capacity and full speed.

The MM-Series Fabrication Center includes:

  • Punch Press
  • Flat Bar/Plate Shear
  • Coper
  • Notcher
  • Angle Shear
  • Optional Round and Square Shear

Kalamazoo Metal Muncher Features

  • Adjustable stroke length up to 9″
  • Up to 3″ ram size . . . Easily adapts to accept over-size / special tooling
  • Easy to change punch and die holder. Die block easily removed to accept unlimited accessories
  • Swing-away stripper gives ready access to the ram stem and makes punch changing quick and easy
  • Standard large table gives the user an ideal work area and accepts up to a 48″ breakset and large special tooling
  • All workstations are approximately the same height, for ease in material handling
  • Press cylinder is foot pedal activated (Rear electric foot control for shear end available)
  • Includes complete electrics . . . 220/440v. standard. Other voltages available at additional cost by request.
  • Comes complete with hydraulic oil; ready to operate. Lubrication points are marked and easily accessible.

Special Capacity Optional Feature

  • Hy-performance blade to increase flat bar shearing capacity
  • Speed-up kit increases ram speed on press and shear end cylinder
  • Adjustable tonnage control feature available

Features differ on 40-ton models.

Additional Information

Throat Depth

14″, 18″

Stroke Length

7″, 9″

Strokes Per Minute

28@1/2

Punch

135 Ton

Hydraulic Pump PSI

3,500

Weight

7,500 lbs, 8,500 lbs

Model MM135A MM135A18
Throat Depth 14" 18"
Open Height 14" 18"
Stroke Length 7" 9"
Ram Shaft Diameter 3" 3"
Strokes Per Minute 28@1/2 28@1/2
Platen Table Size (D x W) 11 x 48" 11 x 48"
Work Station Height (approx.) 30" 30"
Punch (hole dia. thru mat. thickness)
max. hole thru material
max. hole (with special tooling)
135 ton
1 11/16" thru 1"
4 1/2" thru 3/8"
135 ton
1 11/16" thru 1"
4 1/2" thru 3/8"
Plate Shear
(with optional 5"Short Blade)
24"
-
1" x 7"
3/4" x 12"
3/8" x 20"
1/4" x 24"
24"
-
1" x 7"
3/4" x 12"
3/8" x 20"
1/4" x 24"
Angle Shear
(optional angle shear 90 degrees)
(optional angle shear 40 degrees)
4"x4"x3/8"
6"x6"1/2"
5"x5"x1/2"
4"x4"x3/8"
6"x6"1/2"
5"x5"x1/2"
Bar Shear*
round
square

1/4" to 1 1/8"
1/4" to 1 1/8"

1/4" to 1 1/8"
1/4" to 1 1/8"
Coper Notcher 3"x3"x3/8" 3"x3"x3/8"
Hydraulic
pump gpm
psi

7.5
3,500

7.5
3,500
Motor (230/460v. 3ph)** 7.5 hp 7.5 hp
Dimensions
width
length
height

48"
76 1/8"
74 3/4"

48"
97 5/8"
79 1/4"
Weight 7,500 lbs 8,500 lbs
Rated on mild steel (65,000 psi tensile)
* Standard on series MM40
** Optional 208v. available. Tonnage will be derated approximately 10% with 208v., single phase or phase convertor
