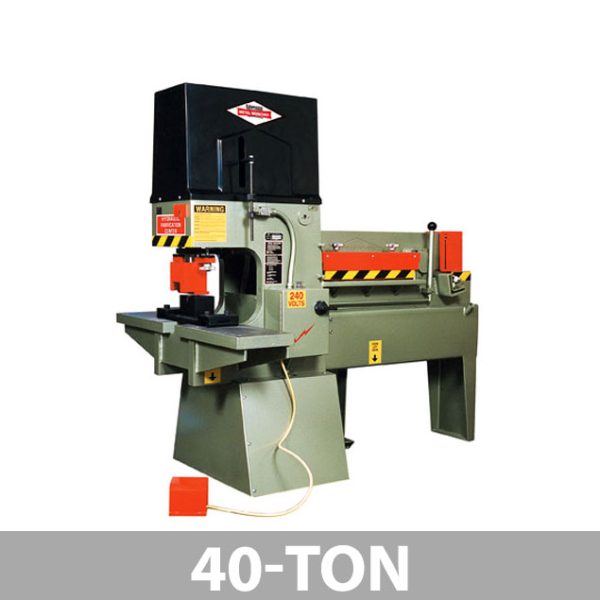

Series MM40 Complete 5-Station Fabrication Center

Kalamazoo Metal Muncher has earned a spot at the top with over 50 years of excellent performance and durability. While others made claims, Kalamazoo Metal Muncher units were busy proving themselves where it really counts . . . on the workshop floor. The many years of on-the-job experience have resulted in design improvement and operating features that assure maximum productive performance and operator safety. No other ironworker offers the smooth, trouble-free performance that has made Kalamazoo Metal Muncher the hallmark of the industry.
Made in the USA

Send an inquiry for this item

Product Description

Two-Cylinder / Two Person Operation

The punch and shear end may be operated separately, independently, and simultaneously at full capacity and full speed.

The MM-Series Fabrication Center includes:

  • Punch Press
  • Flat Bar/Plate Shear
  • Coper
  • Notcher
  • Angle Shear
  • Optional Round and Square Shear

Kalamazoo Metal Muncher Features

  • Adjustable stroke length up to 9″
  • Up to 3″ ram size . . . Easily adapts to accept over-size / special tooling
  • Easy to change punch and die holder. Die block easily removed to accept unlimited accessories
  • Swing-away stripper gives ready access to the ram stem and makes punch changing quick and easy
  • Standard large table gives the user an ideal work area and accepts up to a 48″ breakset and large special tooling
  • All workstations are approximately the same height, for ease in material handling
  • Press cylinder is foot pedal activated (Rear electric foot control for shear end available)
  • Includes complete electrics . . . 220/440v. standard. Other voltages available at additional cost by request.
  • Comes complete with hydraulic oil; ready to operate. Lubrication points are marked and easily accessible.

Special Capacity Optional Feature

  • Hy-performance blade to increase flat bar shearing capacity
  • Speed-up kit increases ram speed on press and shear end cylinder
  • Adjustable tonnage control feature available
Model MM40
Throat Depth 7"
Open Height 9""
Stroke Length 4 1/2"
Ram Shaft Diameter 2"
Strokes Per Minute 40@1/2
Platen Table Size (D x W) 10" x 21"
Work Station Height (approx.) 34 1/4"
Punch (hole dia. thru mat. thickness)
max. hole thru material
max. hole (with special tooling)
40 ton
7/8" thru 1/2"
2" thru 1/4"
Plate Shear
(with optional 5"Short Blade)
14"
19"
5/8" x 6"
1/2" x 8"
1/4" x 13"
-
Angle Shear
(optional angle shear 90 degrees)
(optional angle shear 40 degrees)
3" x 3" x 5/16"
-
-
Bar Shear*
round
square

1"
1"
Coper Notcher 2 1/16" x 2 3/4" x 5/16"
Hydraulic
pump gpm
psi

4
4,000
Motor (230/460v. 3ph)** 5 hp
Dimensions
width
length
height

21"
60 1/4"
65 1/2"
Weight 2,200 lbs
Rated on mild steel (65,000 psi tensile)
* Standard on series MM40
** Optional 208v. available. Tonnage will be derated approximately 10% with 208v., single phase or phase convertor
